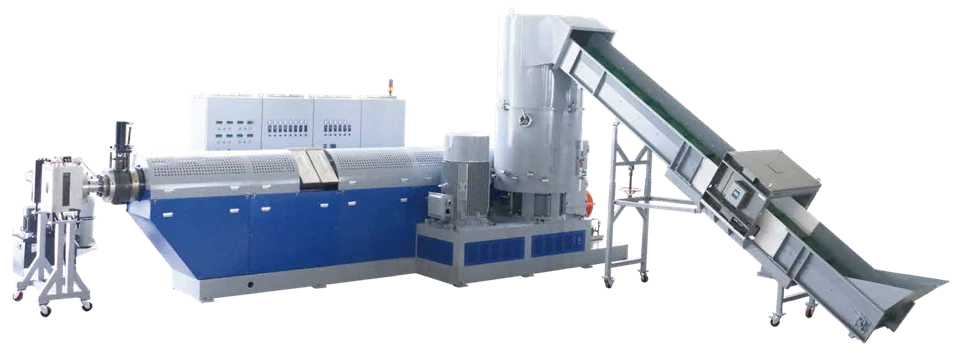

Qhov pelletizing extruder muaj cov ntsia hlau tshwj xeeb, nws yog qhov tsim nyog rau kev rov ua dua tshiab ntawm PP, PE, Bopet, BOPA, PA66, thiab lwm yam. Qhuav zaj duab xis. Lub Gearbox yog lub siab torque tsim uas muaj cov haujlwm ntawm cov suab nrov tsawg thiab ua haujlwm ruaj khov. Qhov saum npoo ntawm ntsia hlau thiab chim tau raug kho tshwj xeeb kom yog li ntawd lub hau ntswj yog hnav, lawv muaj cov txiaj ntsig zoo thiab ua haujlwm muaj peev xwm ntau dua. Tus Extruder muaj lub tshuab nqus tsev muaj zog uas tuaj yeem tso pa tawm lossis roj ua kom ruaj khov thiab cov pellets muaj ntau yam.
Nws tsim nyog rau kev tsim cov PP, PE, Bopp, Bopet, Bopet, BOPA, PA66 thiab lwm zaj duab xis qhuav yas ua dua tshiab. Lub hau ntswj thiab lub thoob tau kho nrog kev kho tshwj xeeb, hnav-resistant, kev sib xyaw ua ke zoo thiab cov zis siab. Tus qauv tsim ntawm lub nqus dej nqus dej lossis cov tso dej noo tuaj yeem tshem tawm cov dej noo thiab kev tso pa tawm, thiab cov pellets ntau dua, thiab ua kom pom tau zoo tshaj plaws ntawm cov khoom lag luam.
Lub ntsiab kev tsis sib xws
|
Tus qauv |
Ntsia thawv dia. (hli) |
L/D |
Ntsia Hlau Ceev (RPM) |
Lub cev muaj zog loj (kw) |
Khoom uas tsim tau lawm (kg / h) |
|
JWP90 |
90 |
36/1 |
20-150 |
75-90 |
200-300 |
|
JWP120 |
120 |
36/1 |
20-120 |
110-132 |
300-400 |
|
JWP150 |
150 |
36/1 |
20-100 |
160-200 |
400-500 |
|
JWP180 |
180 |
36/1 |
20-100 |
250-315 |
600-800 |
|
JWP200 |
200 |
36/1 |
20-100 |
280-415 |
900-1200 |
Nco tseg: Cov kev qhia tshwj xeeb yog hloov pauv yam tsis muaj ntawv ceeb toom ua ntej.
Cim npe nrov: JWP Series Peb Lub Tshuab Contizing Pelletizing Tshuab, Yeeb Nkab Extrusion Machinery
